Silent Pump Options for Diesel Heaters

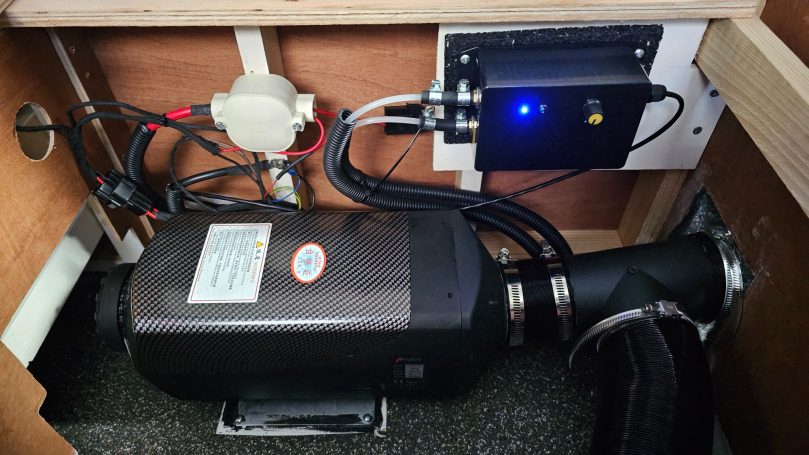

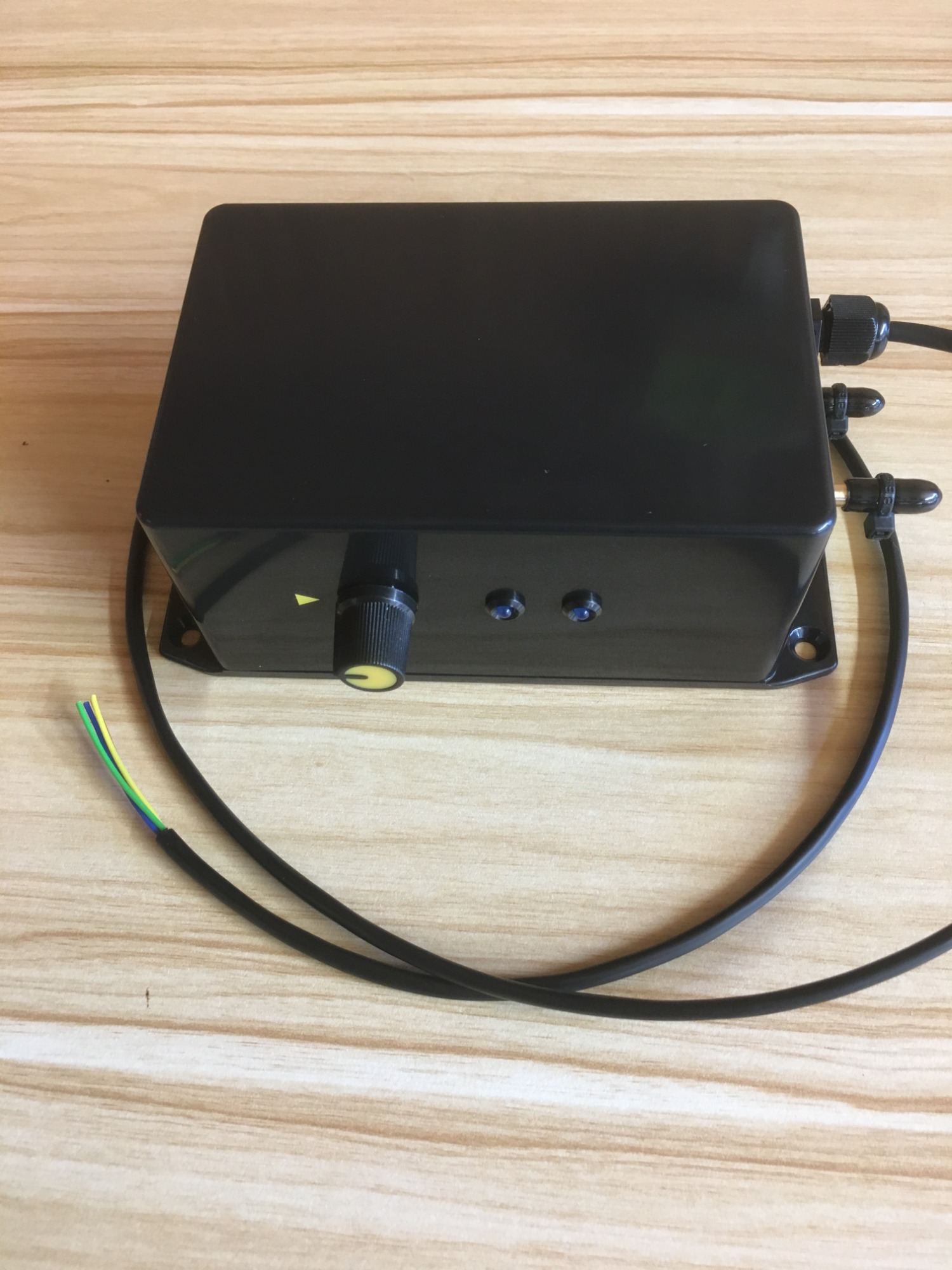

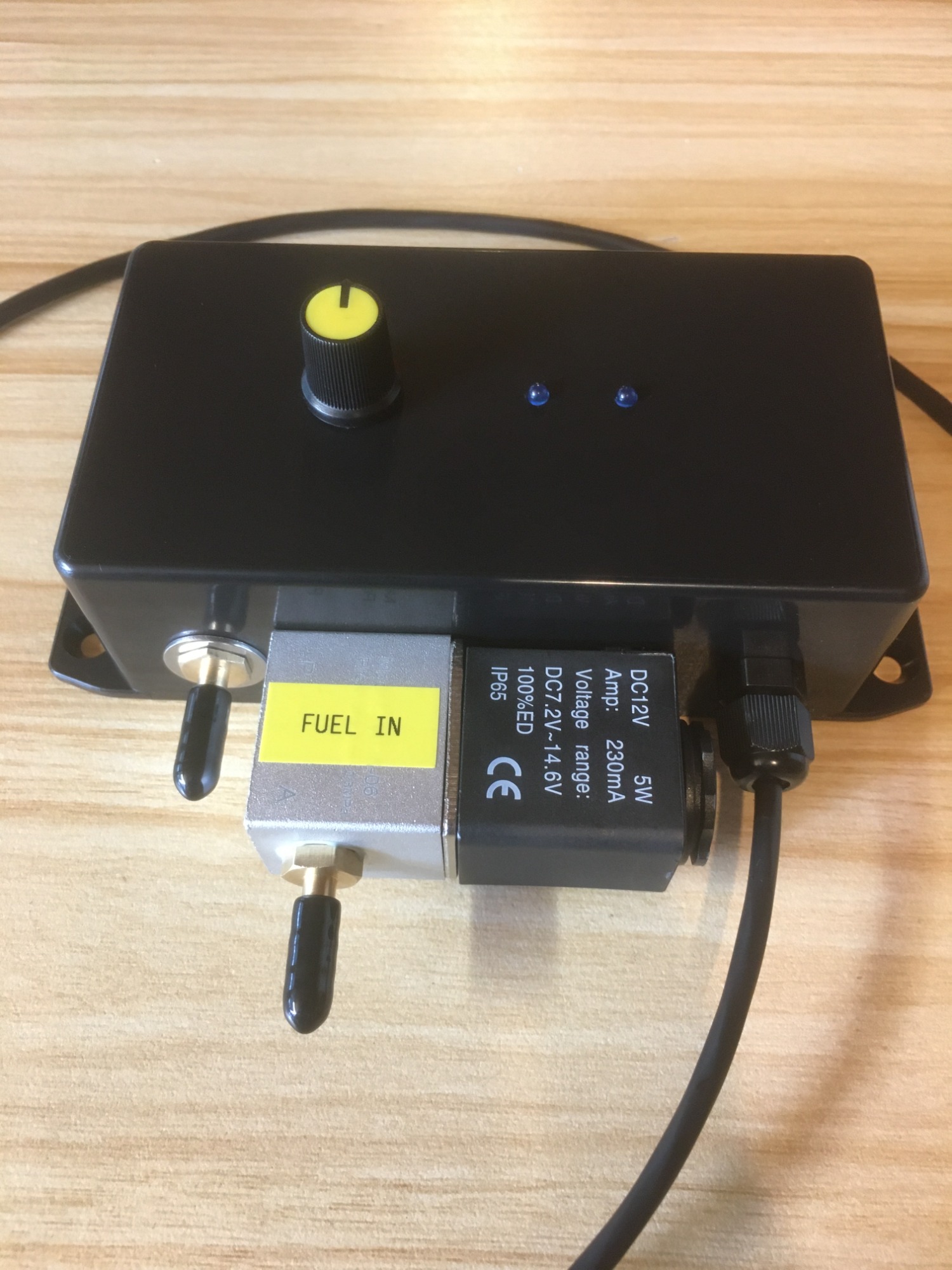

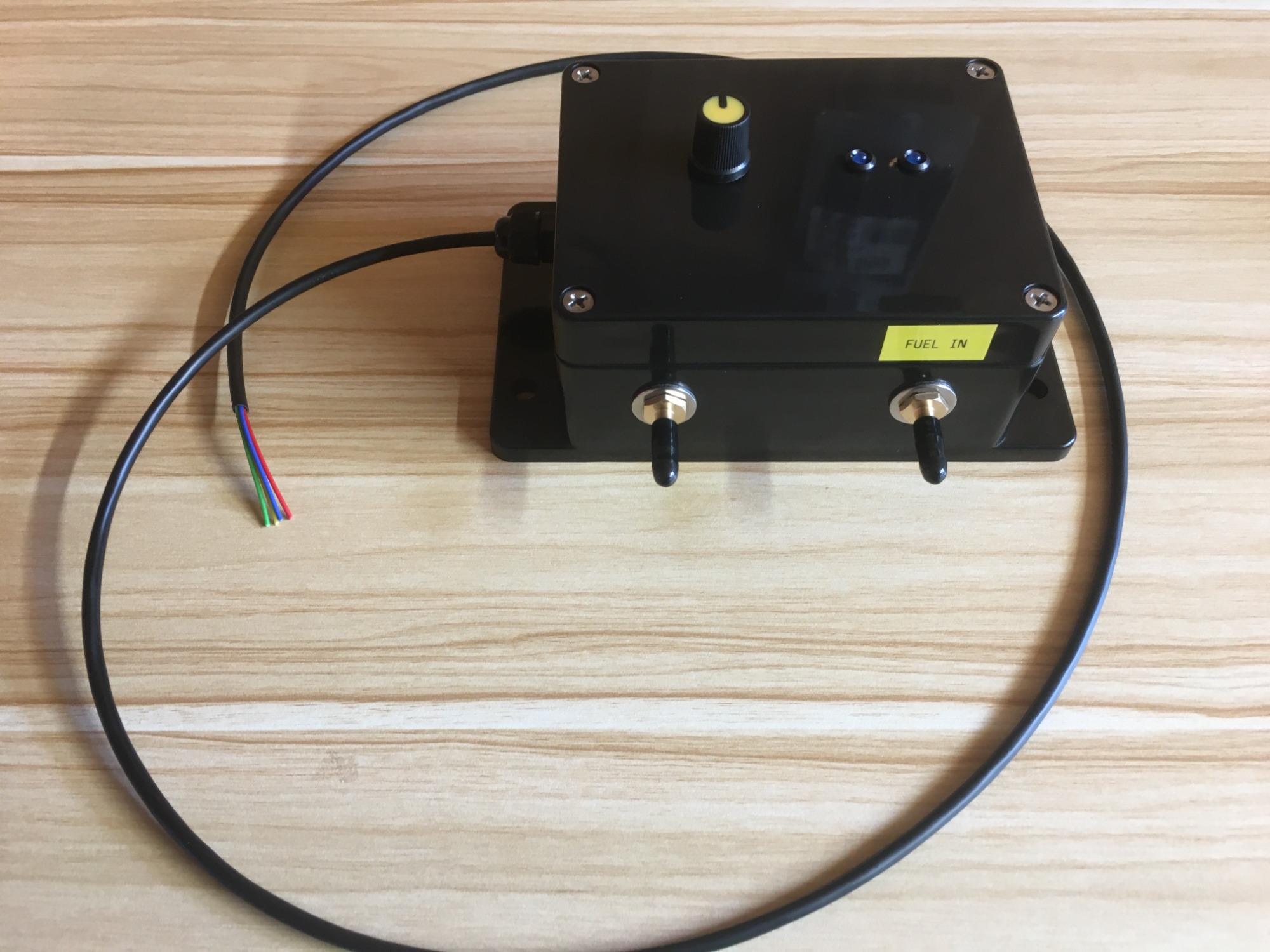

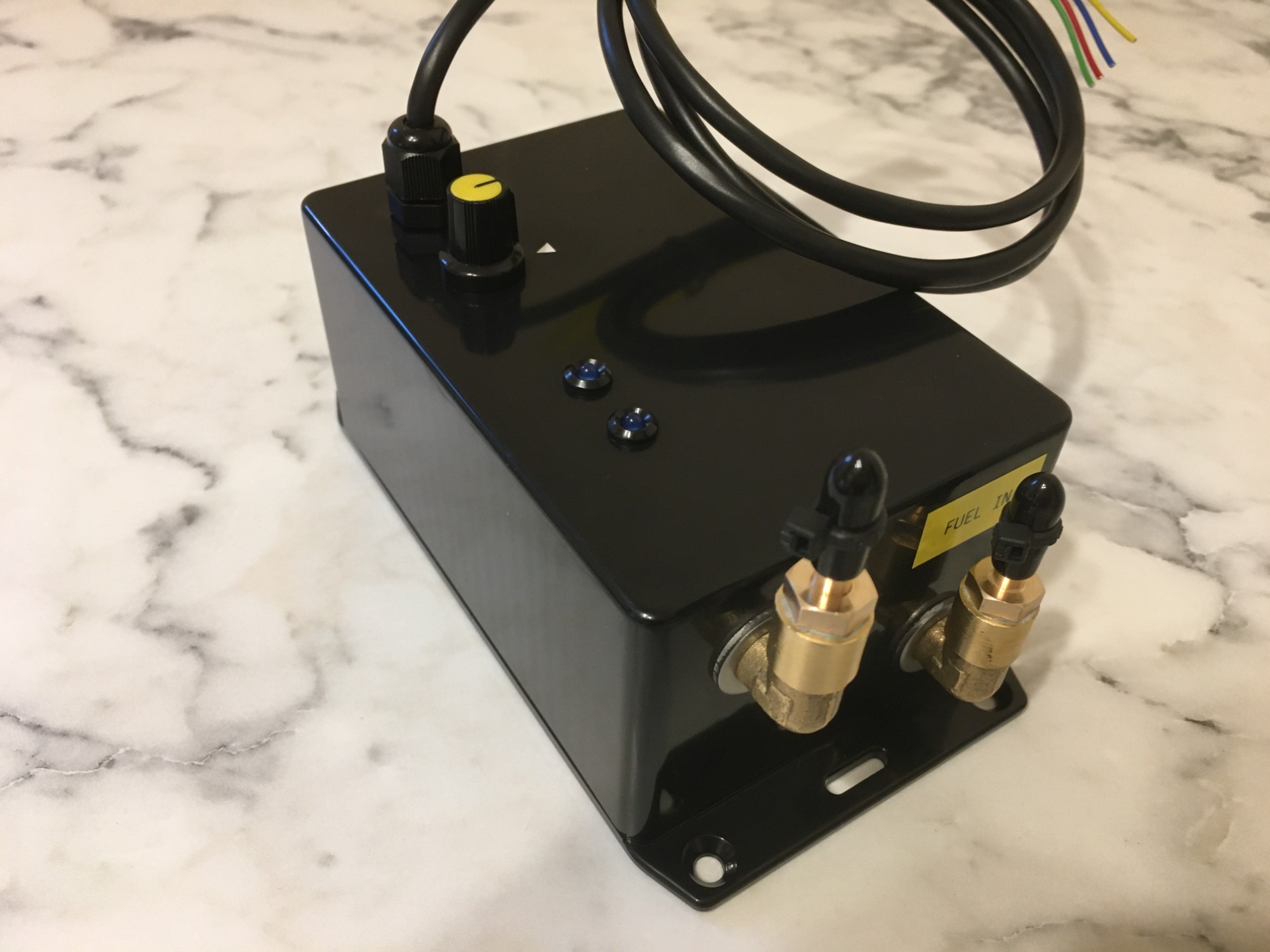

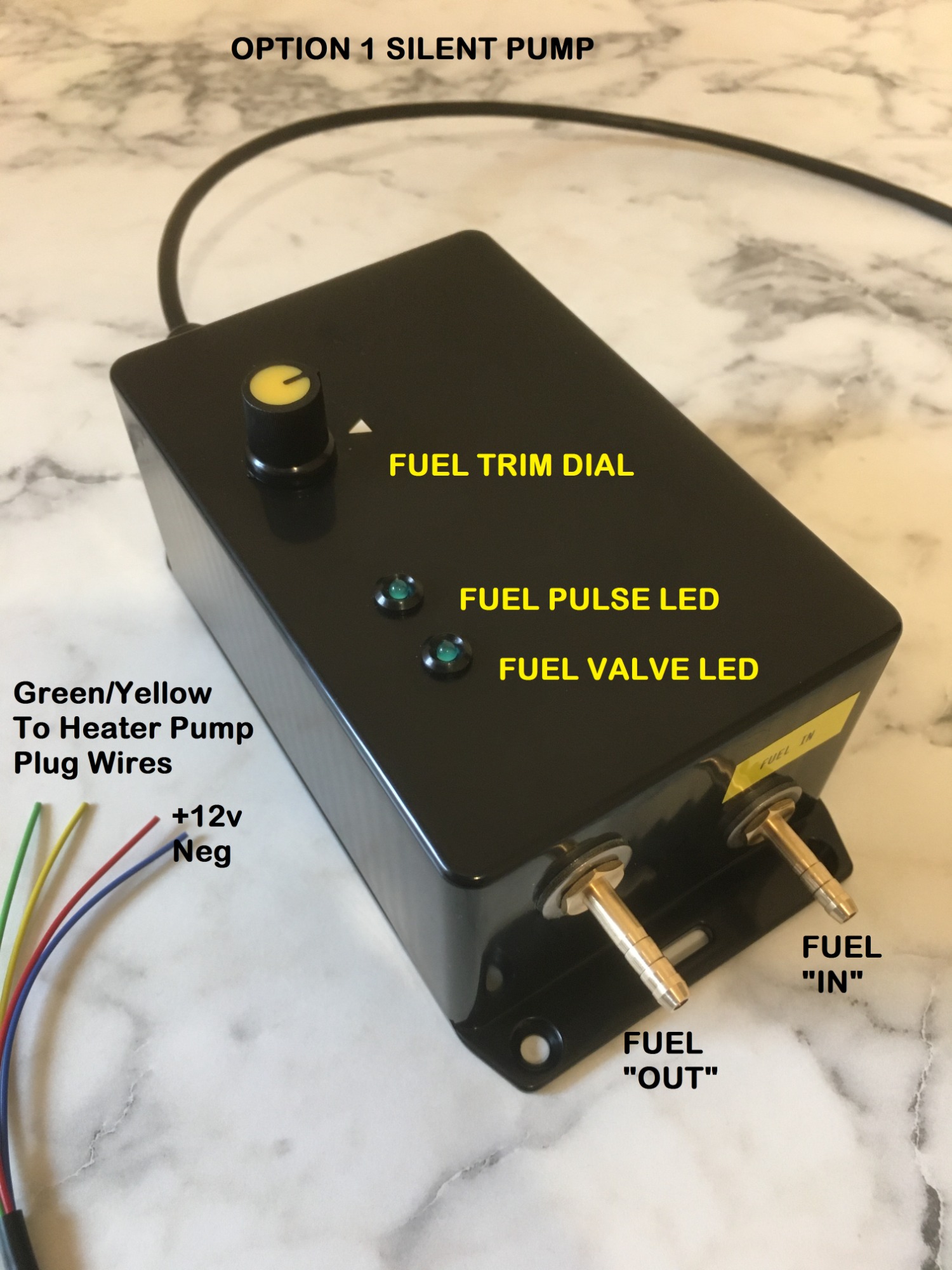

Option 1 - Silent Pump For Internal Mounting.

-Black ABS IP54 enclosure.

-Fitted with anti siphon valve so can be mounted above or below the fuel tank.

-Dial and leds can be moved from top to the side at request.

-145mm including tabs (120mm without) long x 80mm wide x 55mm high. The fuel trim knob adds 20mm to the height.

£135 + pp

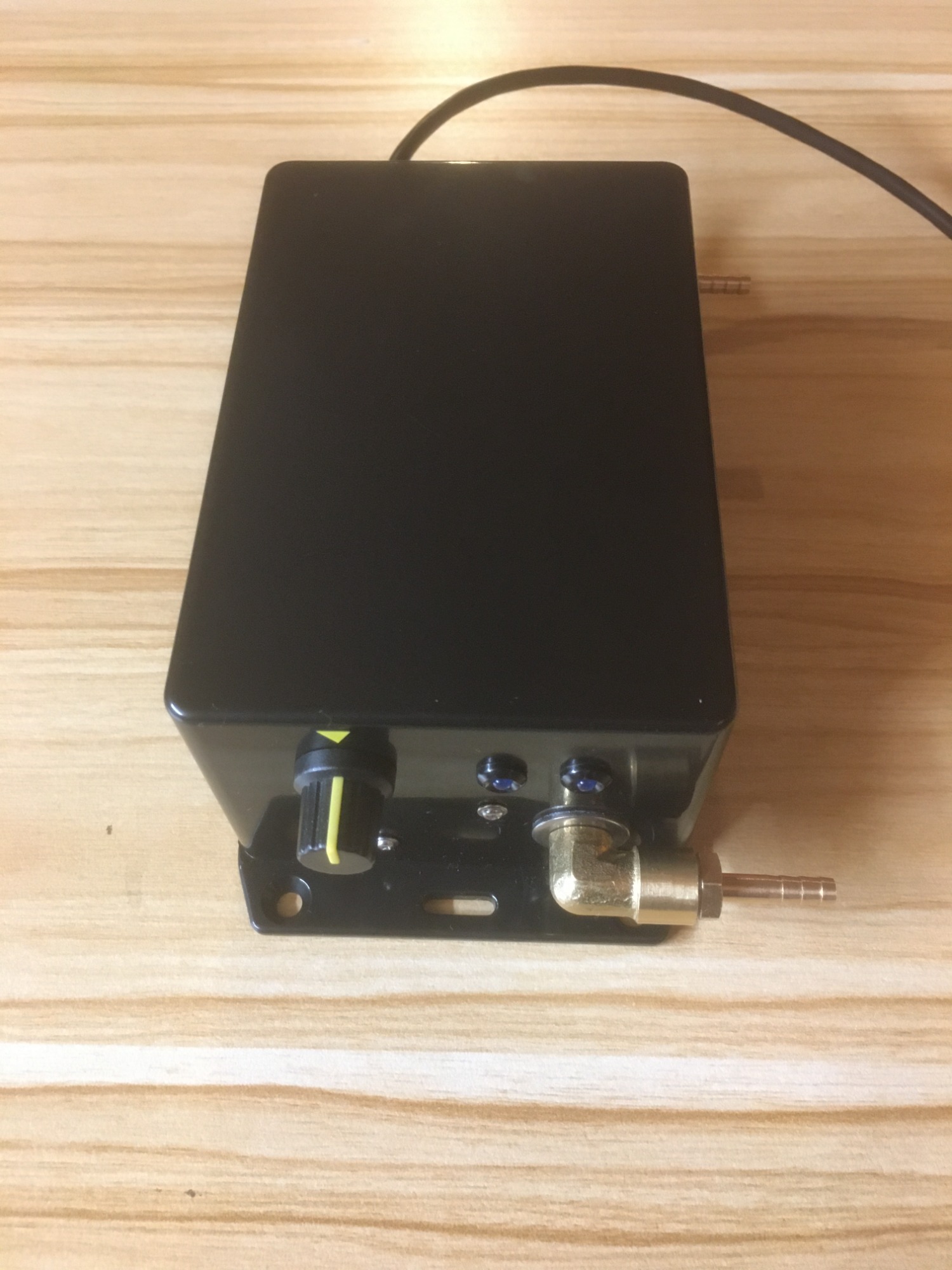

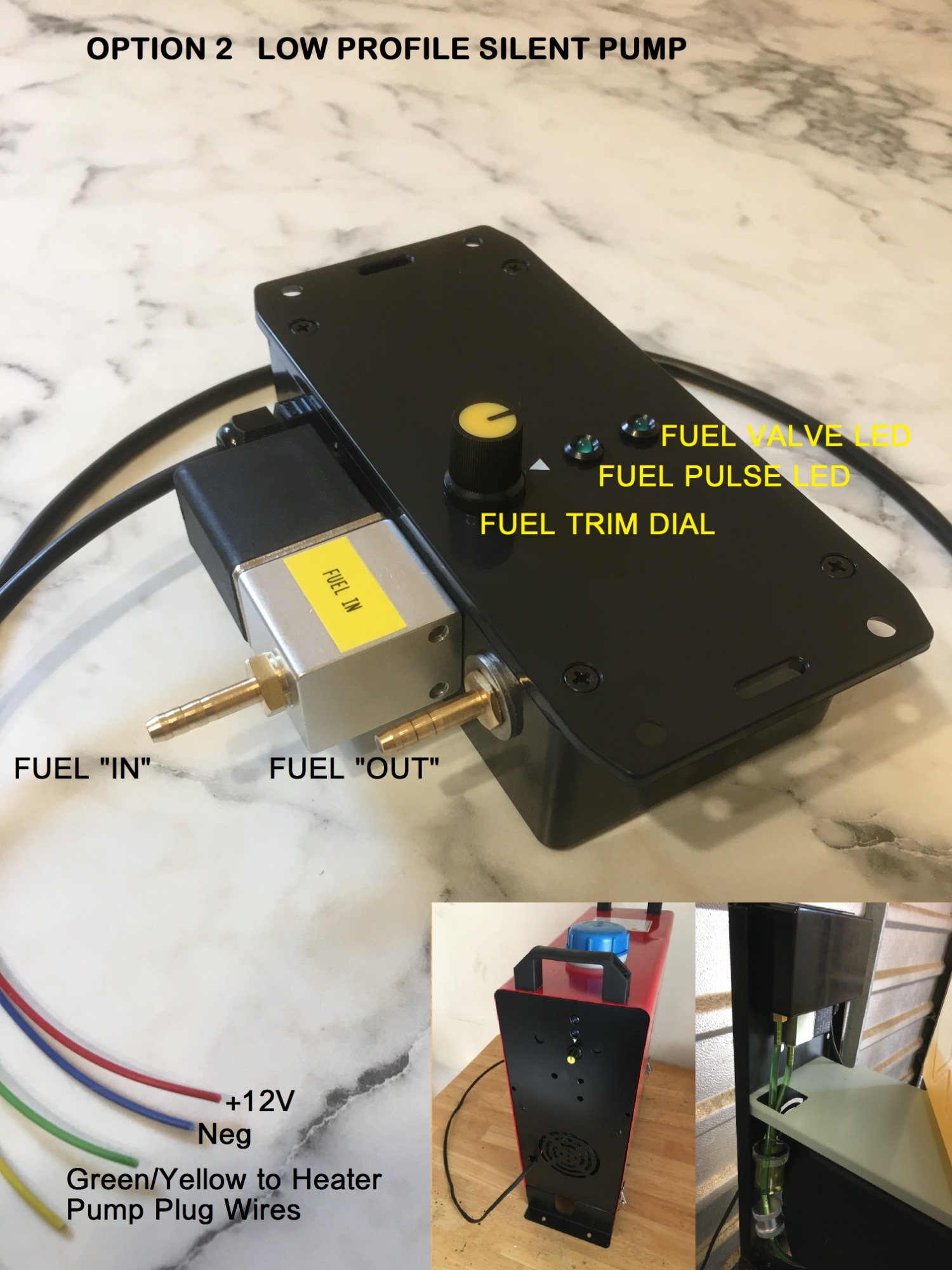

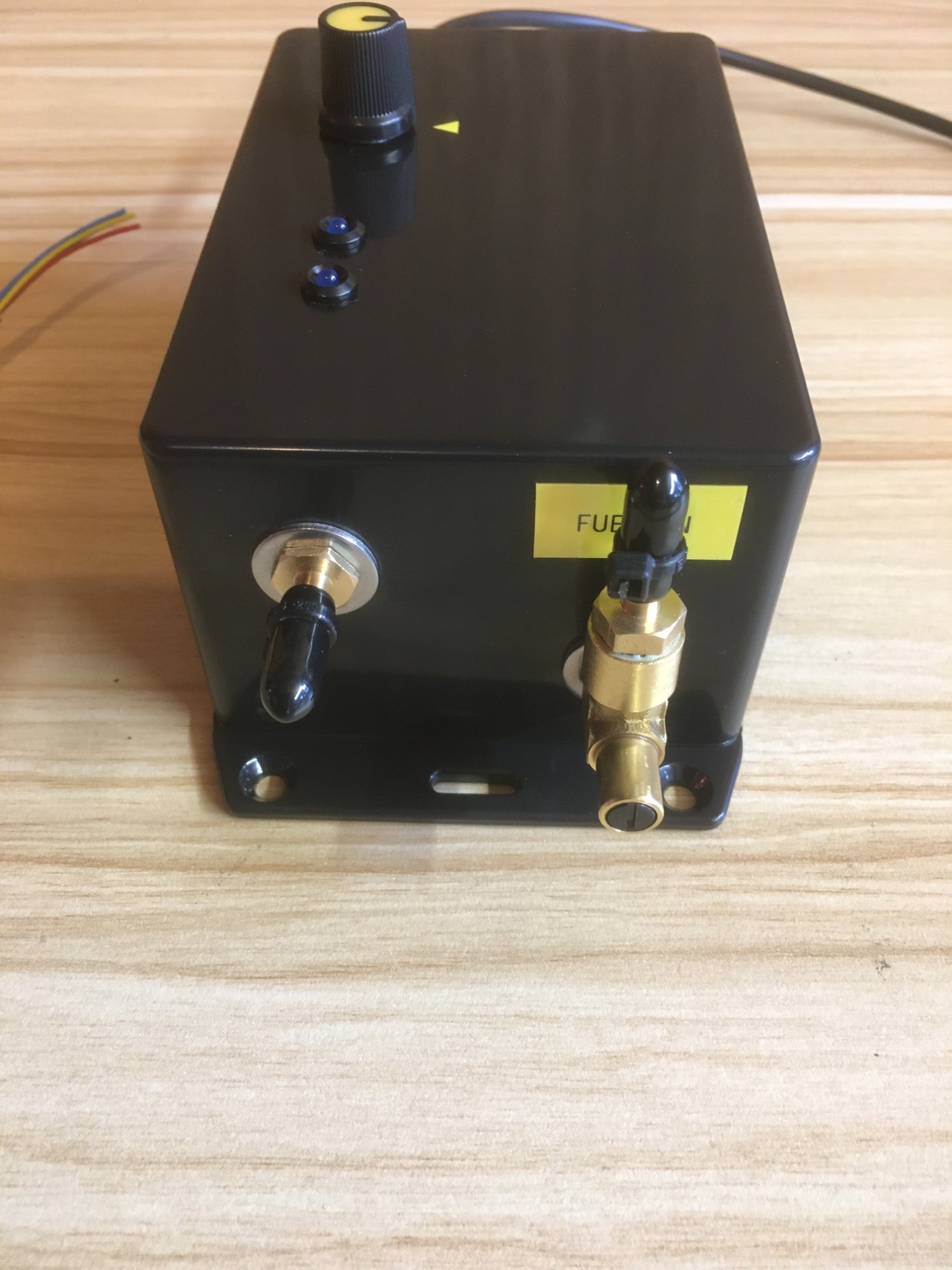

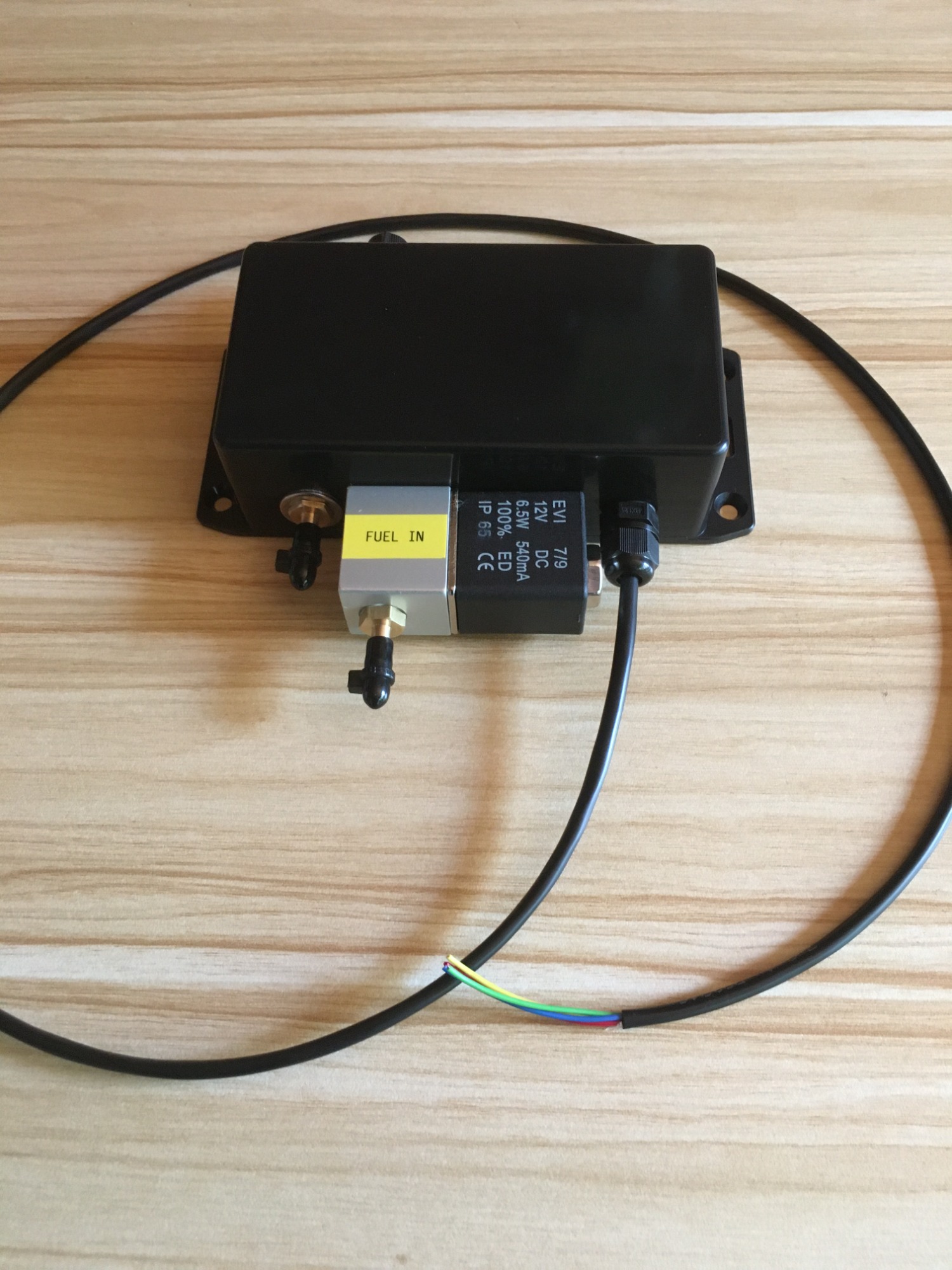

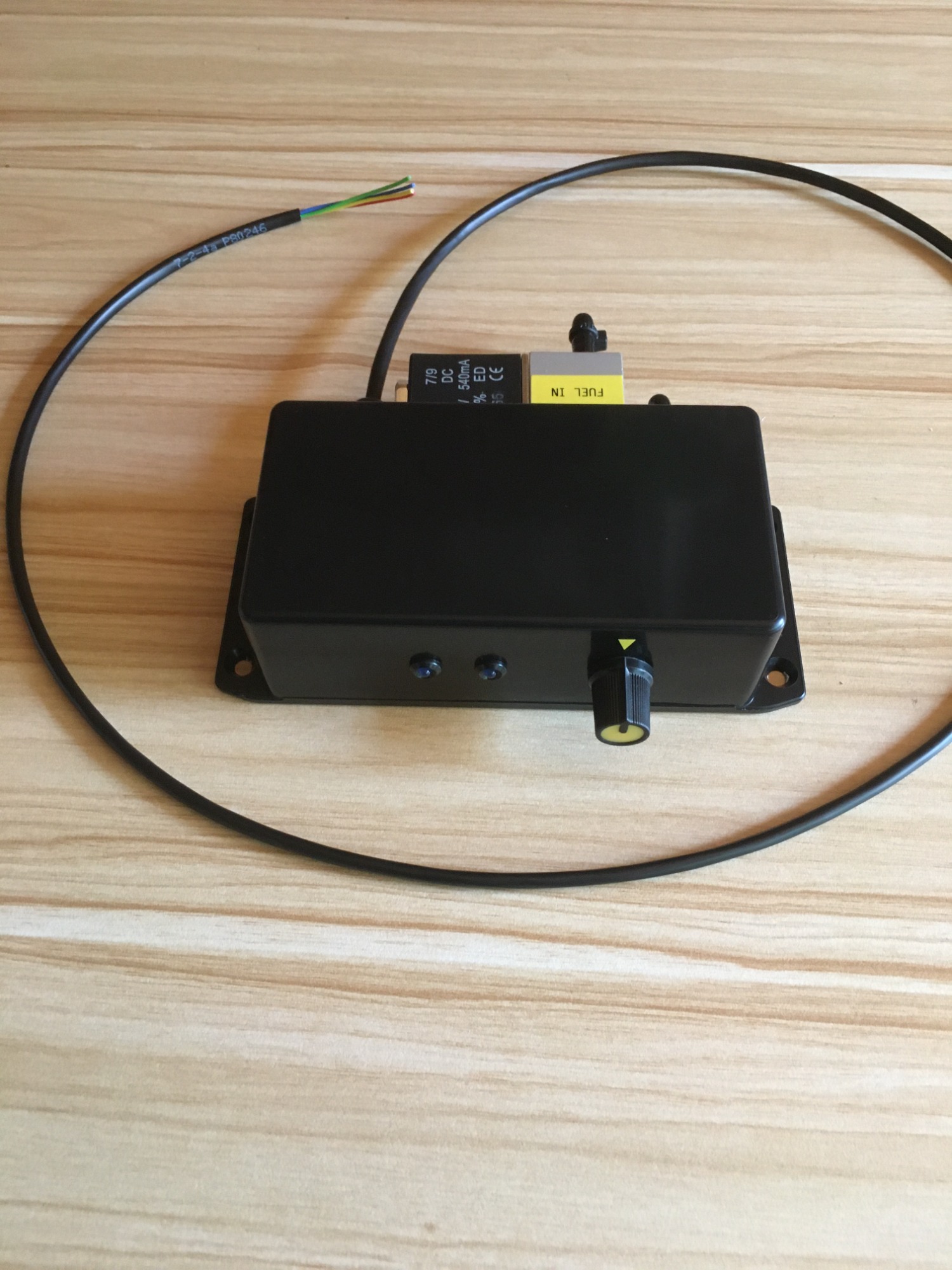

Option 2 - Low Profile Silent Pump.

-Black ABS IP54 enclosure.

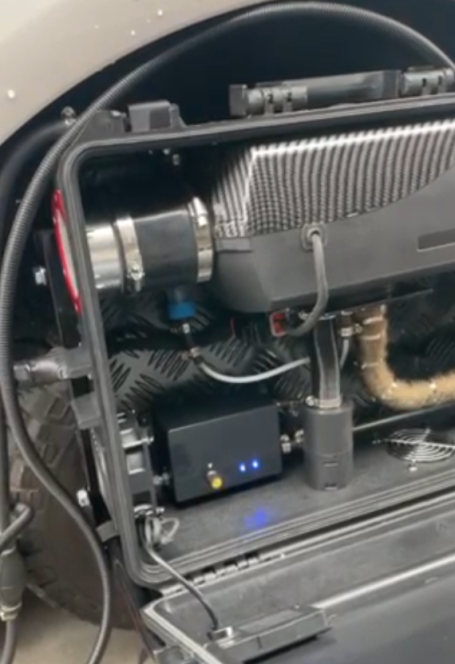

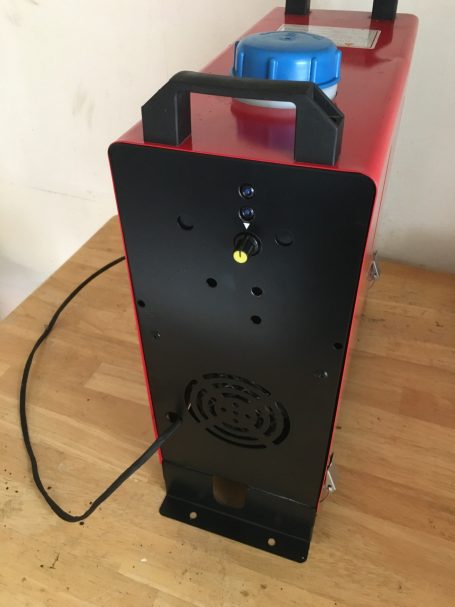

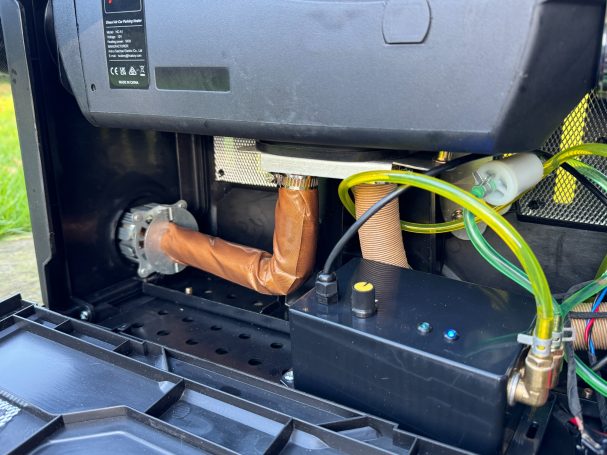

-Rear facing dial/leds for mounting inside All-In-One heaters (please check dimensions).

-Fitted with anti siphon valve so can be mounted above or below fuel tank.

-Dial and leds can be moved from top to the side at request.

-145mm including tabs (120mm without) long x 65mm wide x 40mm high. External anti siphon valve adds 30mm and barbed fitting adds a further 30mm.

£145 + pp

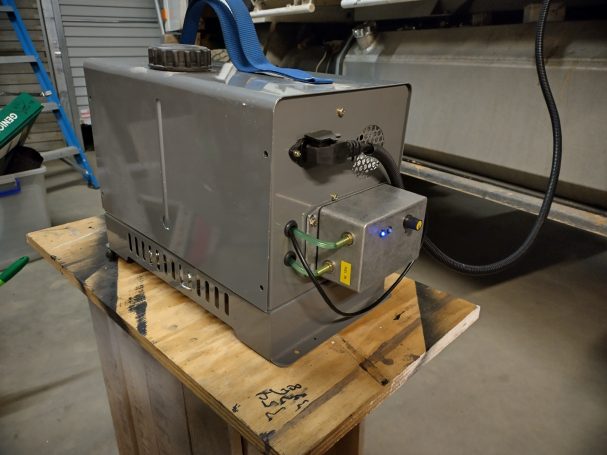

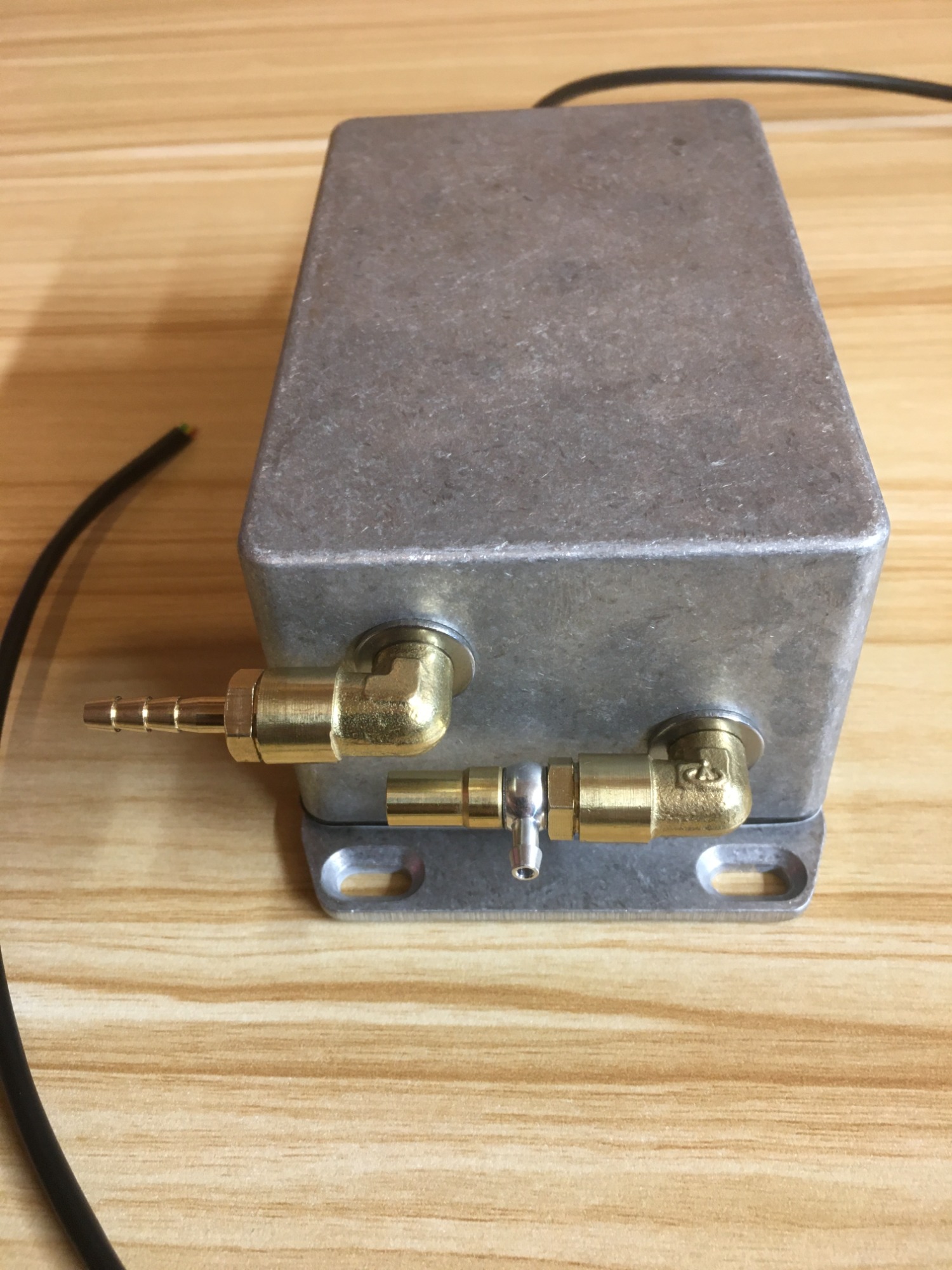

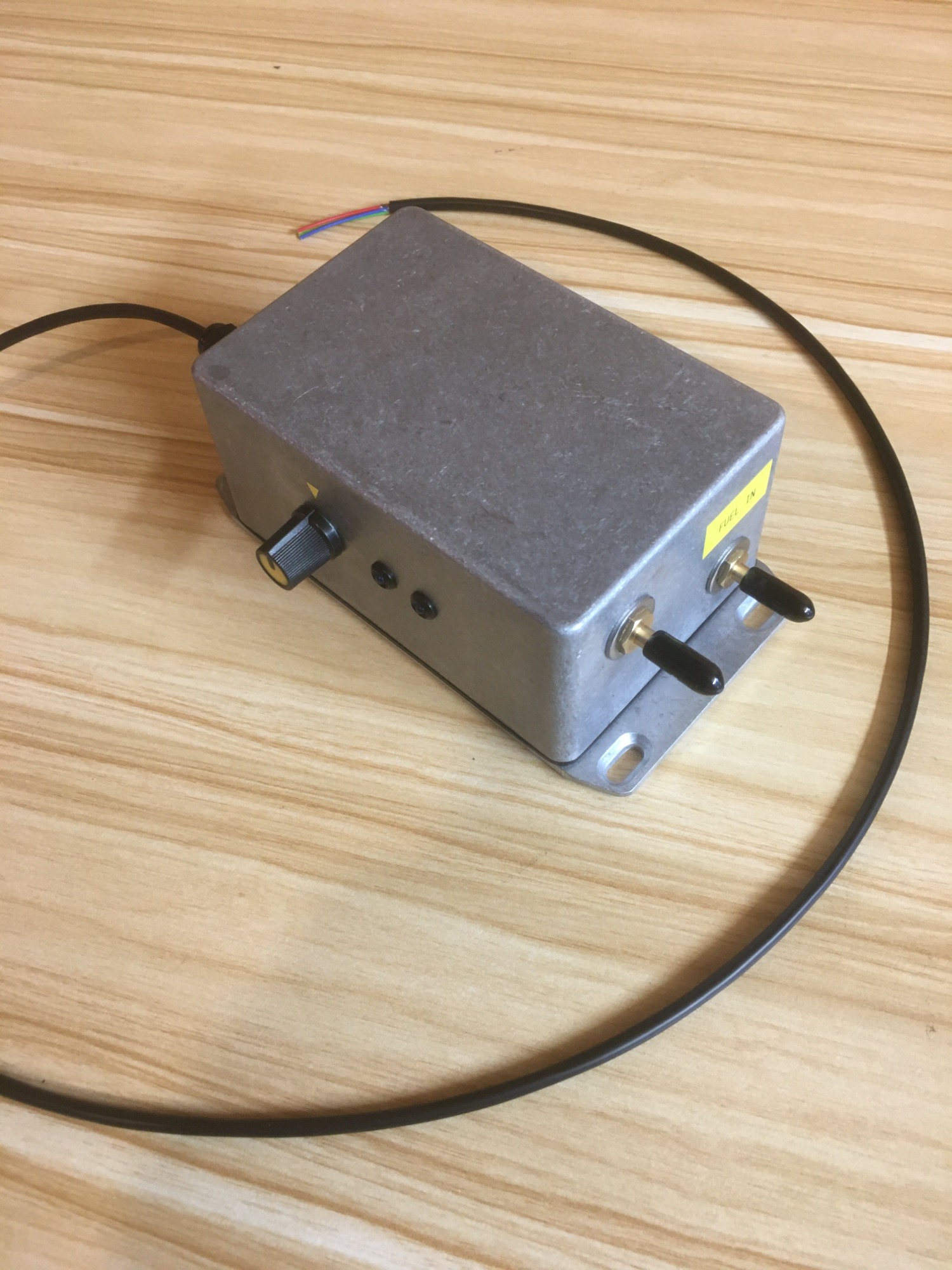

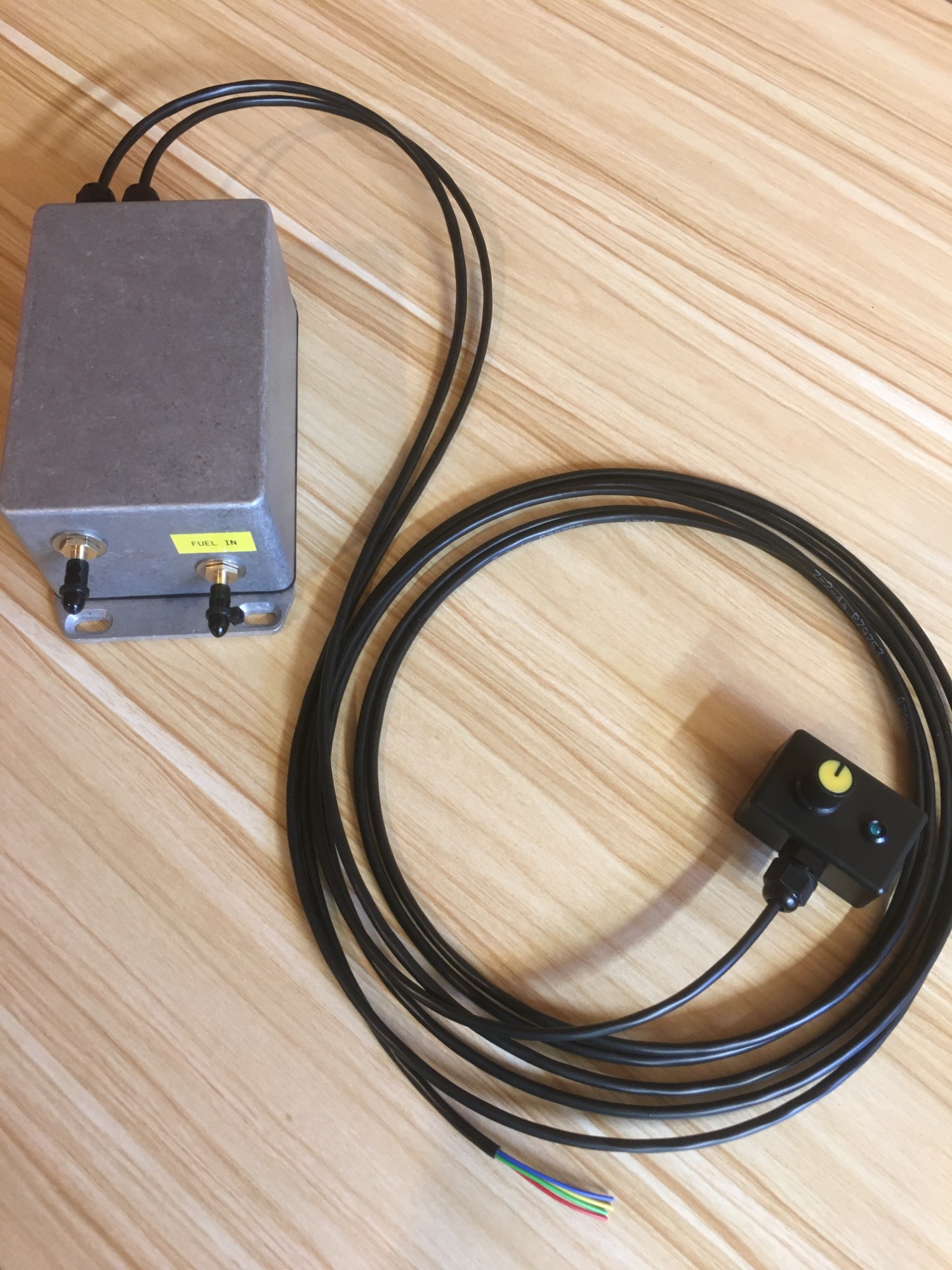

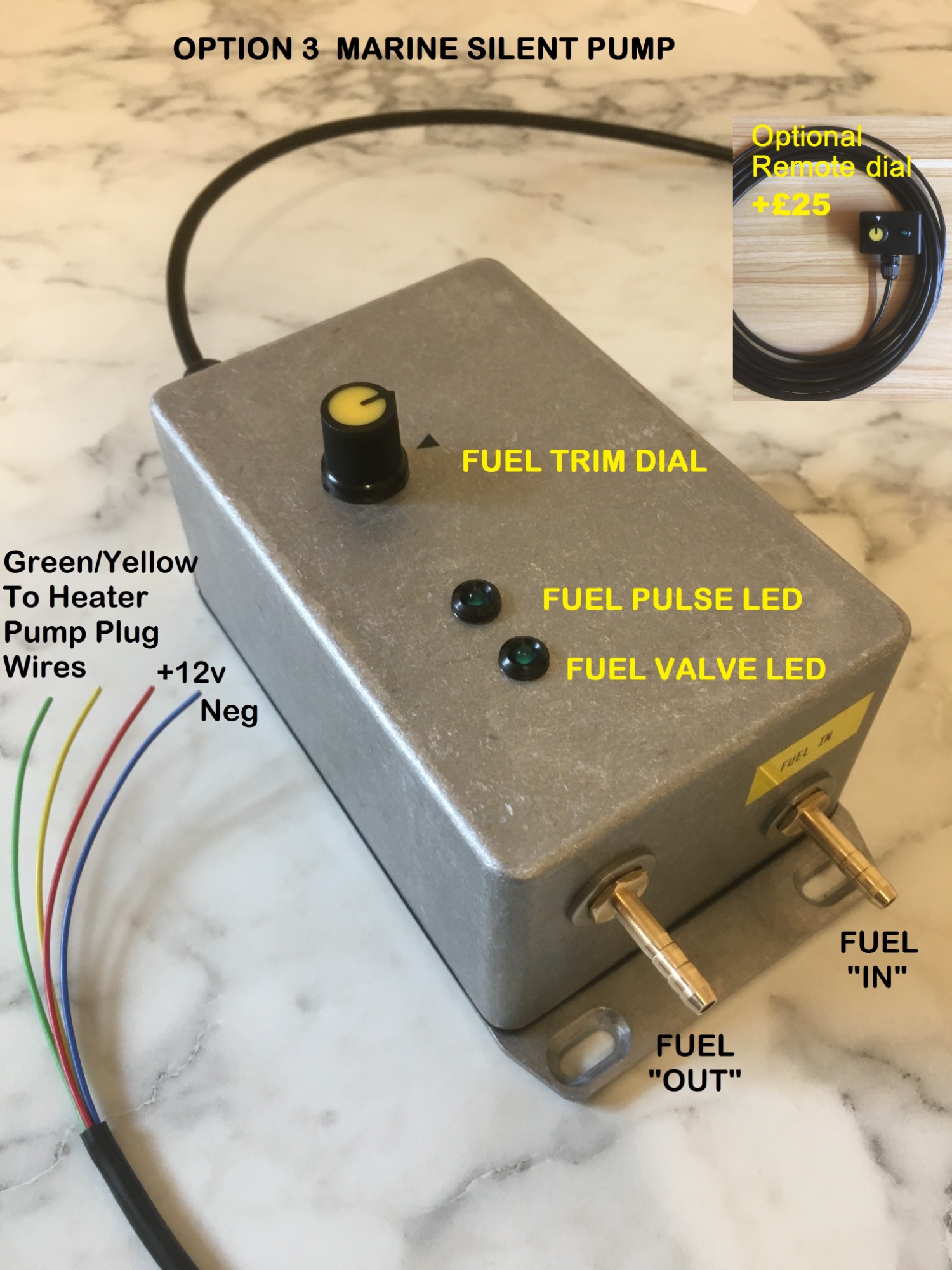

Option 3 - Marine Spec Silent Pump.

-IP65 cast aluminium box to comply with marine regulations.

-Fitted with anti siphon valve so can be mounted above or below fuel tank.

-Dial and leds can be moved from top to the side at request.

-150mm including tabs (110mm without) long x 90mm wide x 55mm high. The fuel trim knobs adds 20mm to the height.
£160 + pp

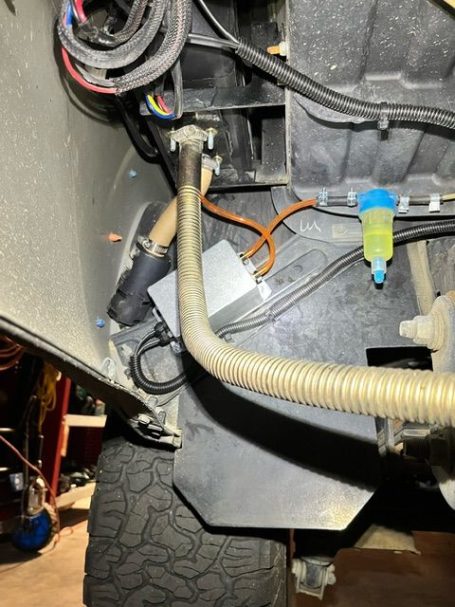

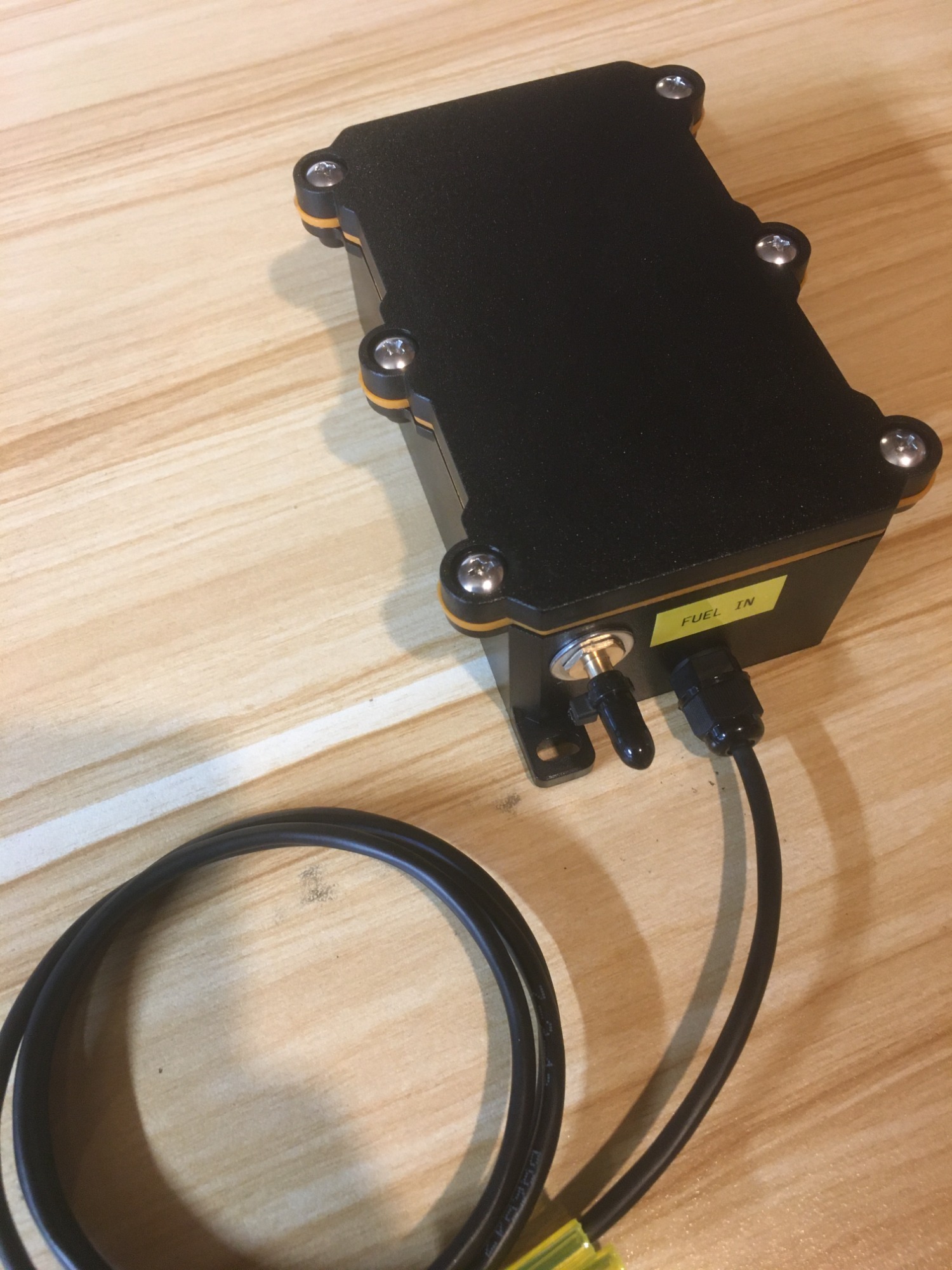

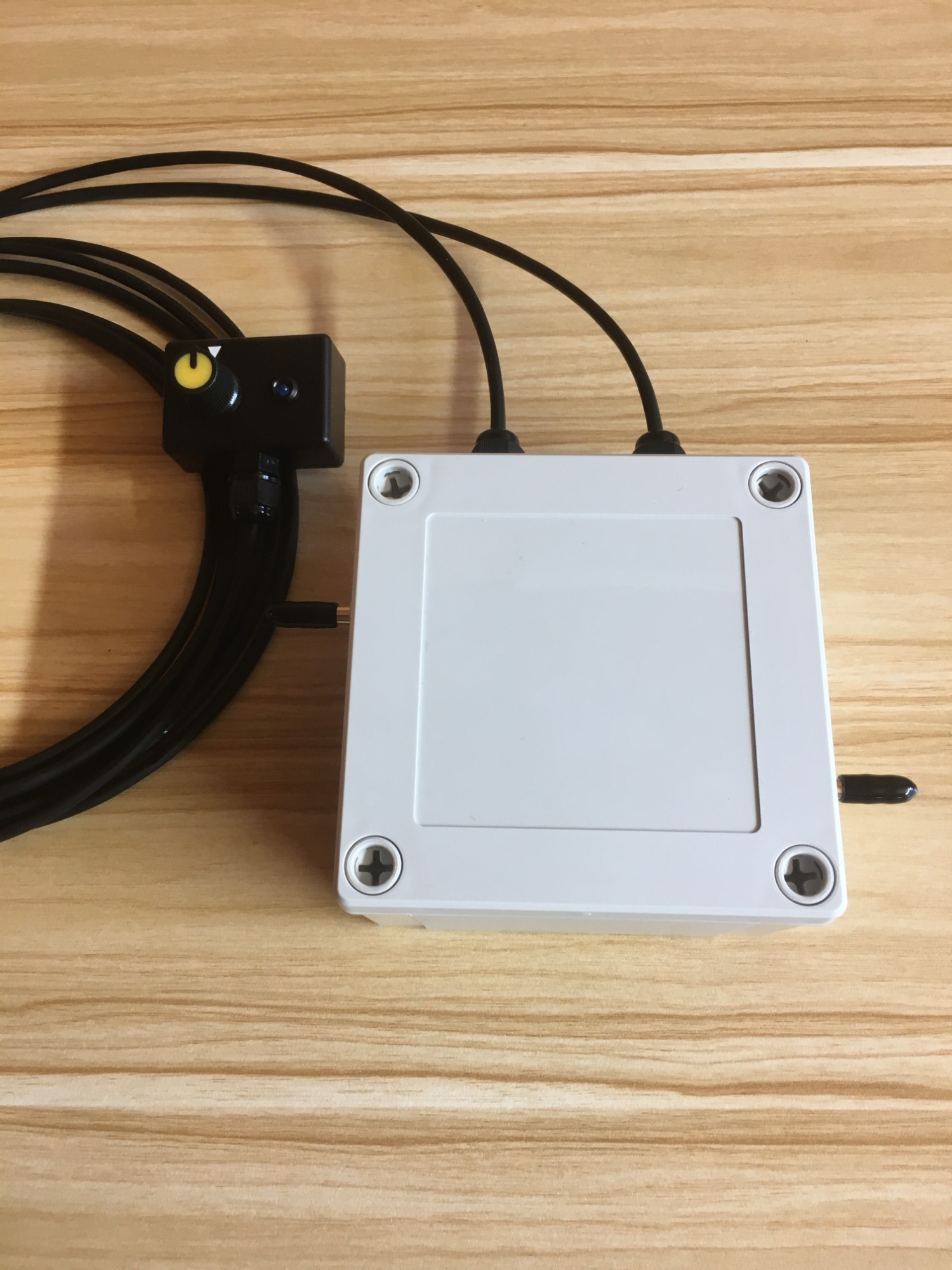

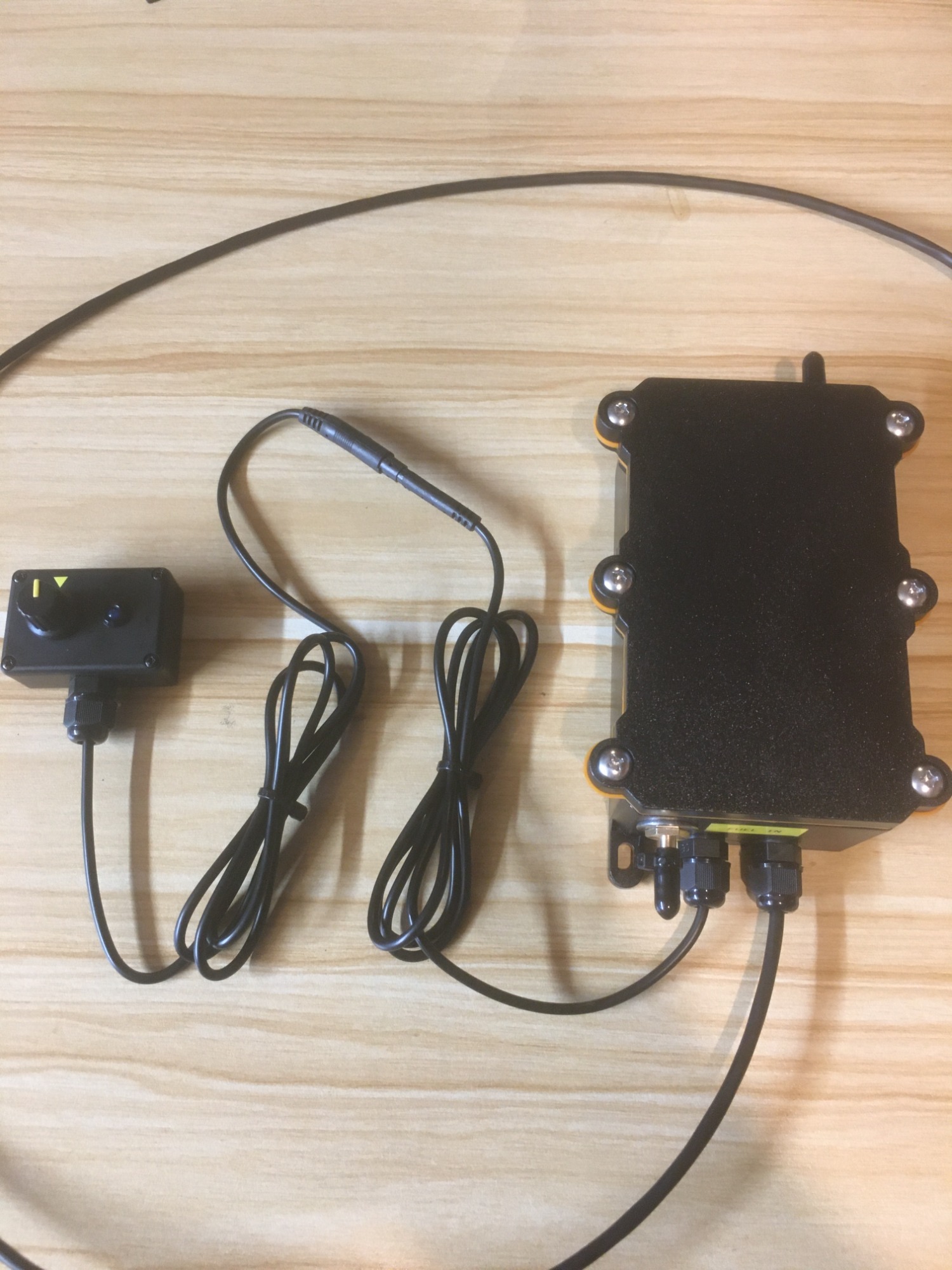

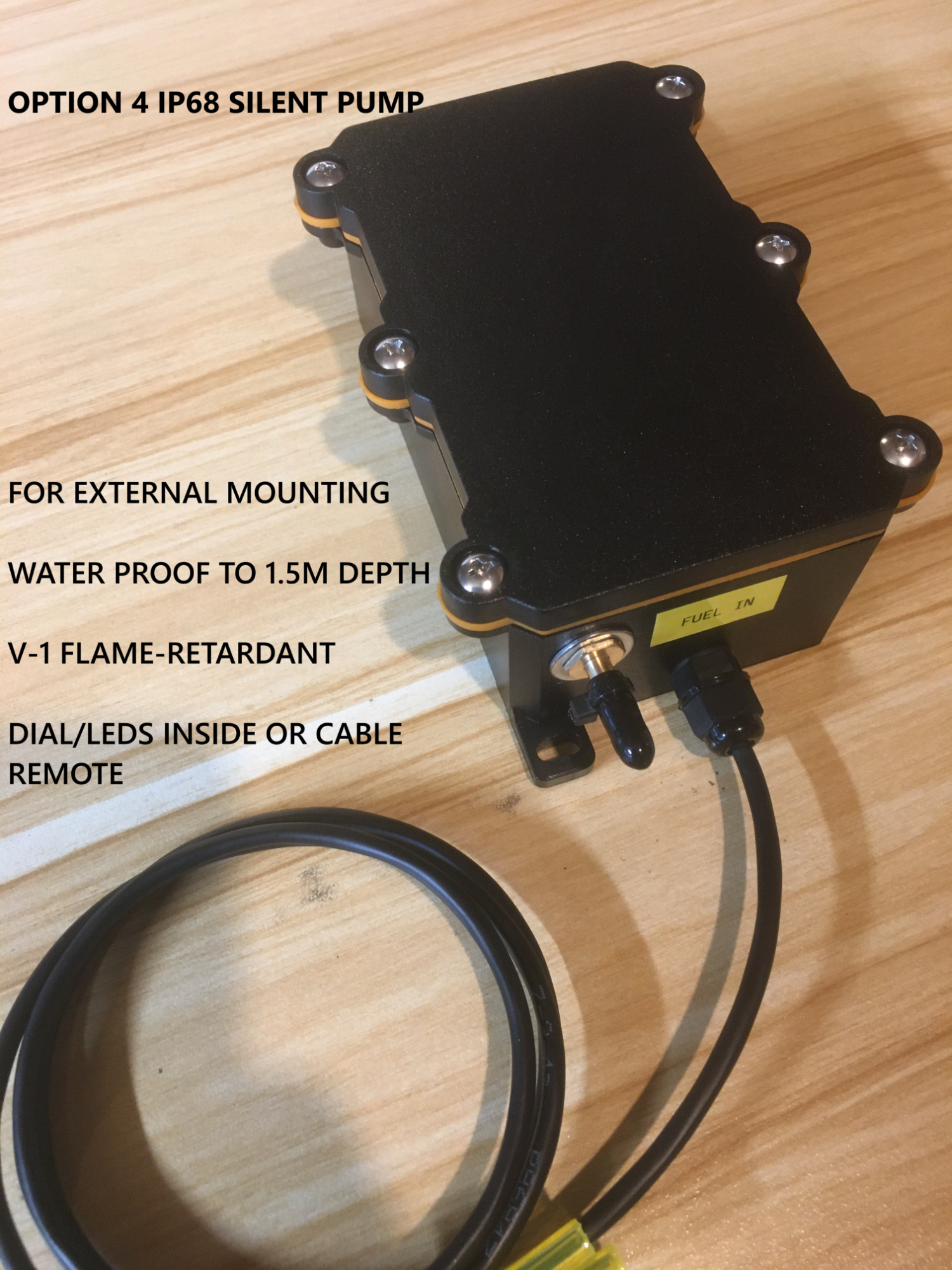

NEW RELEASE Option 4 - IP68 Silent Pump For External Mounting.

-Waterproof to 1.5m depth, ideal for river crossings.

-Fitted with anti-siphon valve so can be mounted above or below fuel tank.

-Dial and leds are inside or option for remote dial/led to any length.

-Impact-resistant polycarbonate case with silicone gasket.
-Flame retardant V-1 rating.

-120mm long x 70mm wide x 48mm high.
£170 + pp
With remote dial/led to any length £195 + pp.

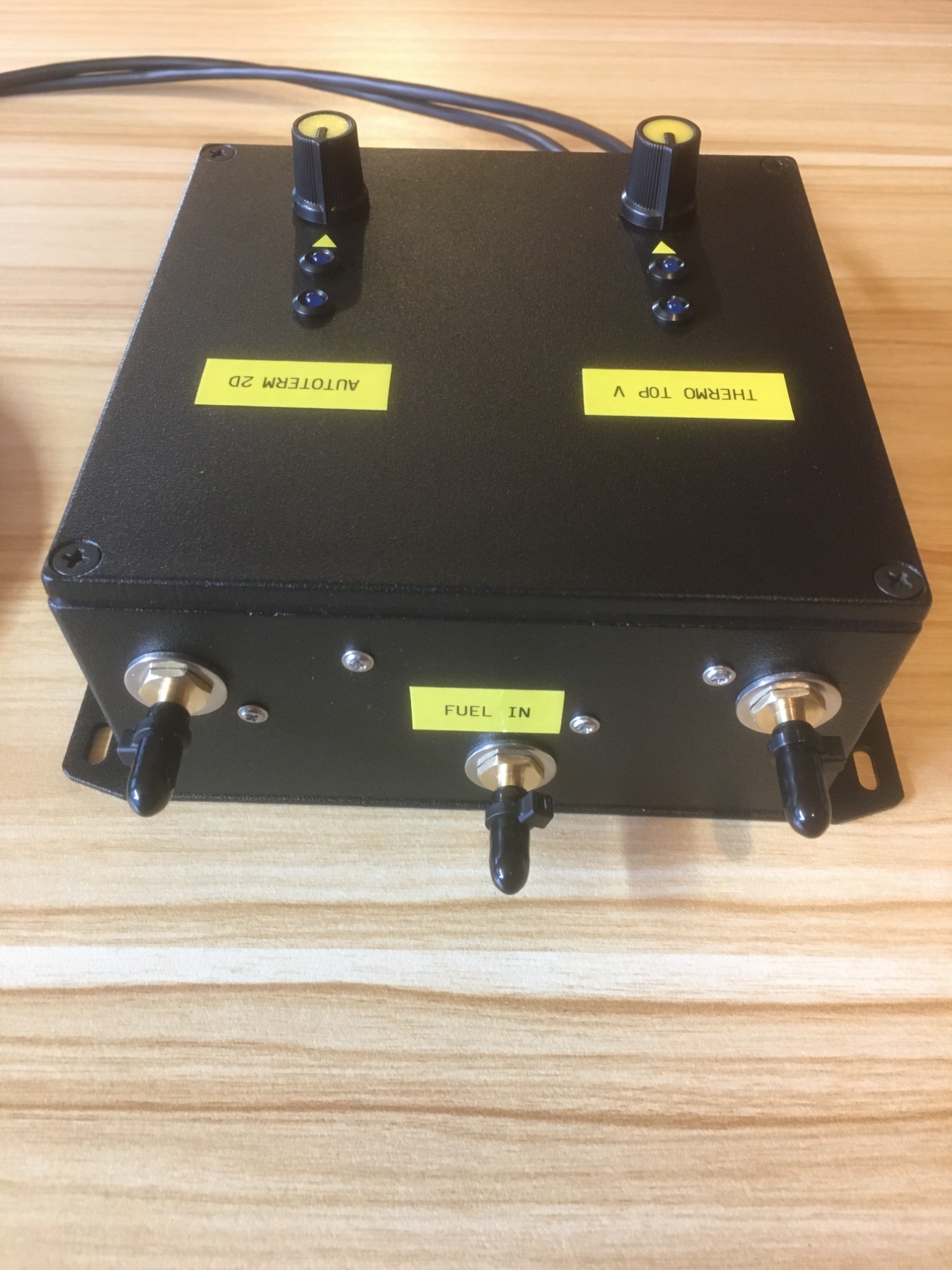

Custom build? You tell me what your requirements are, and I'll quote and build it!

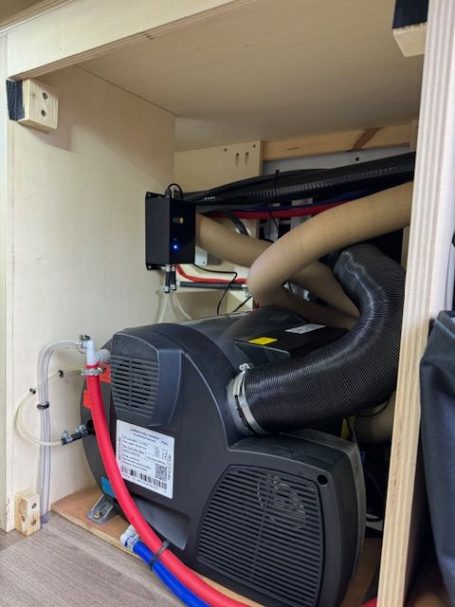

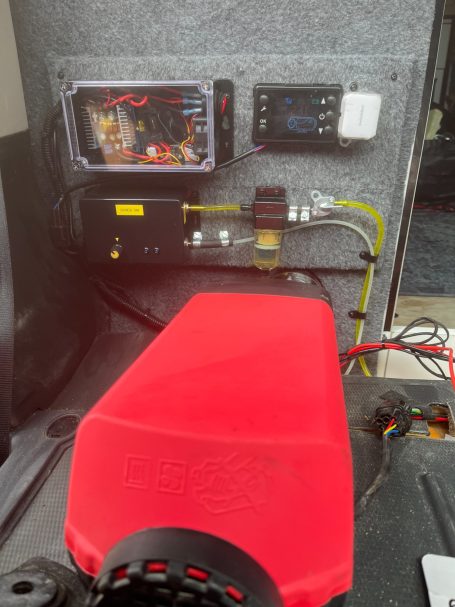

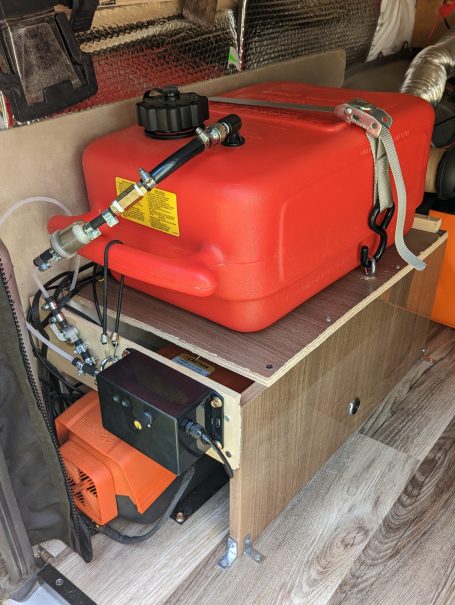

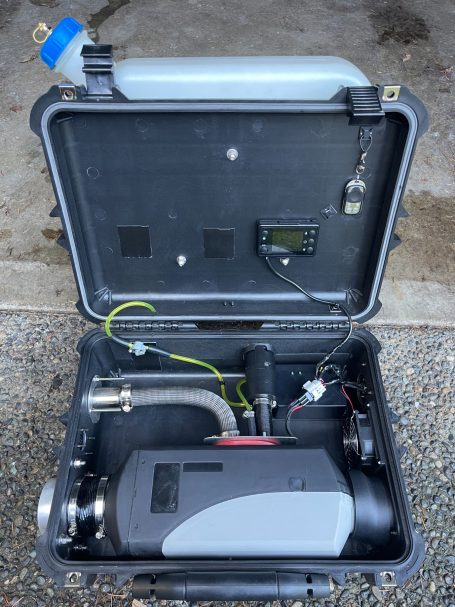

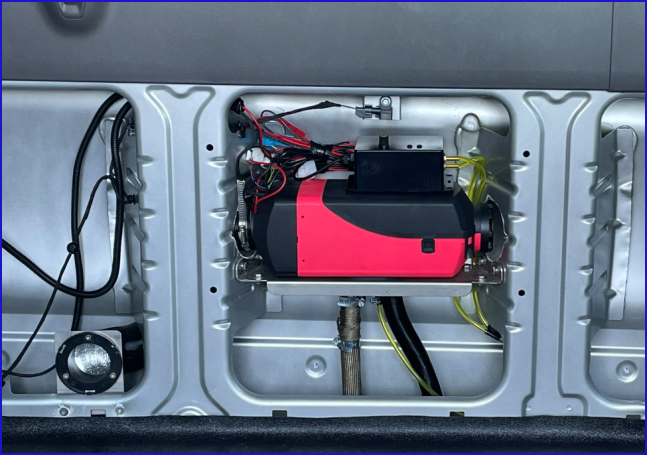

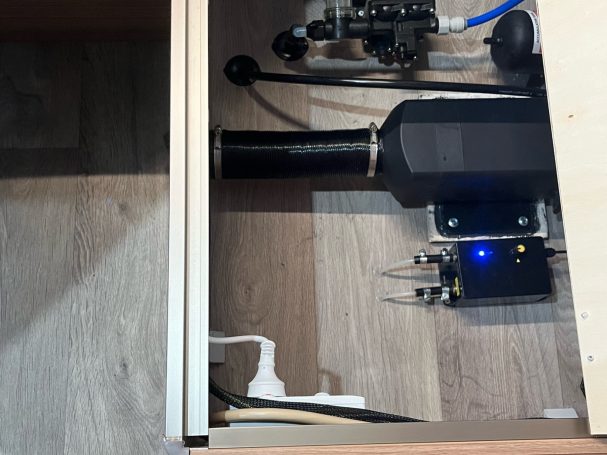

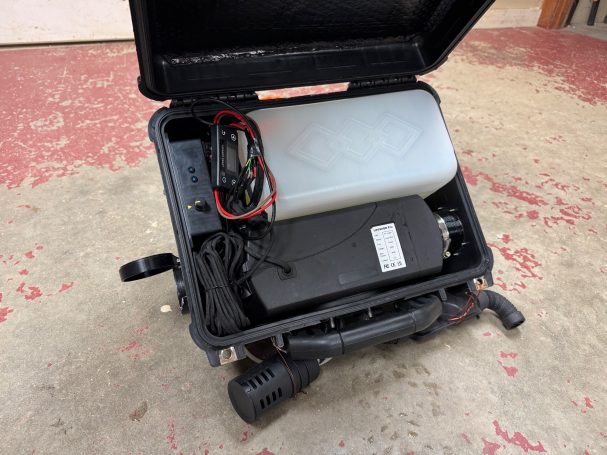

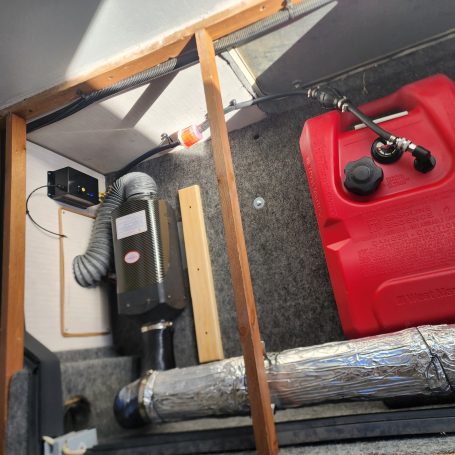

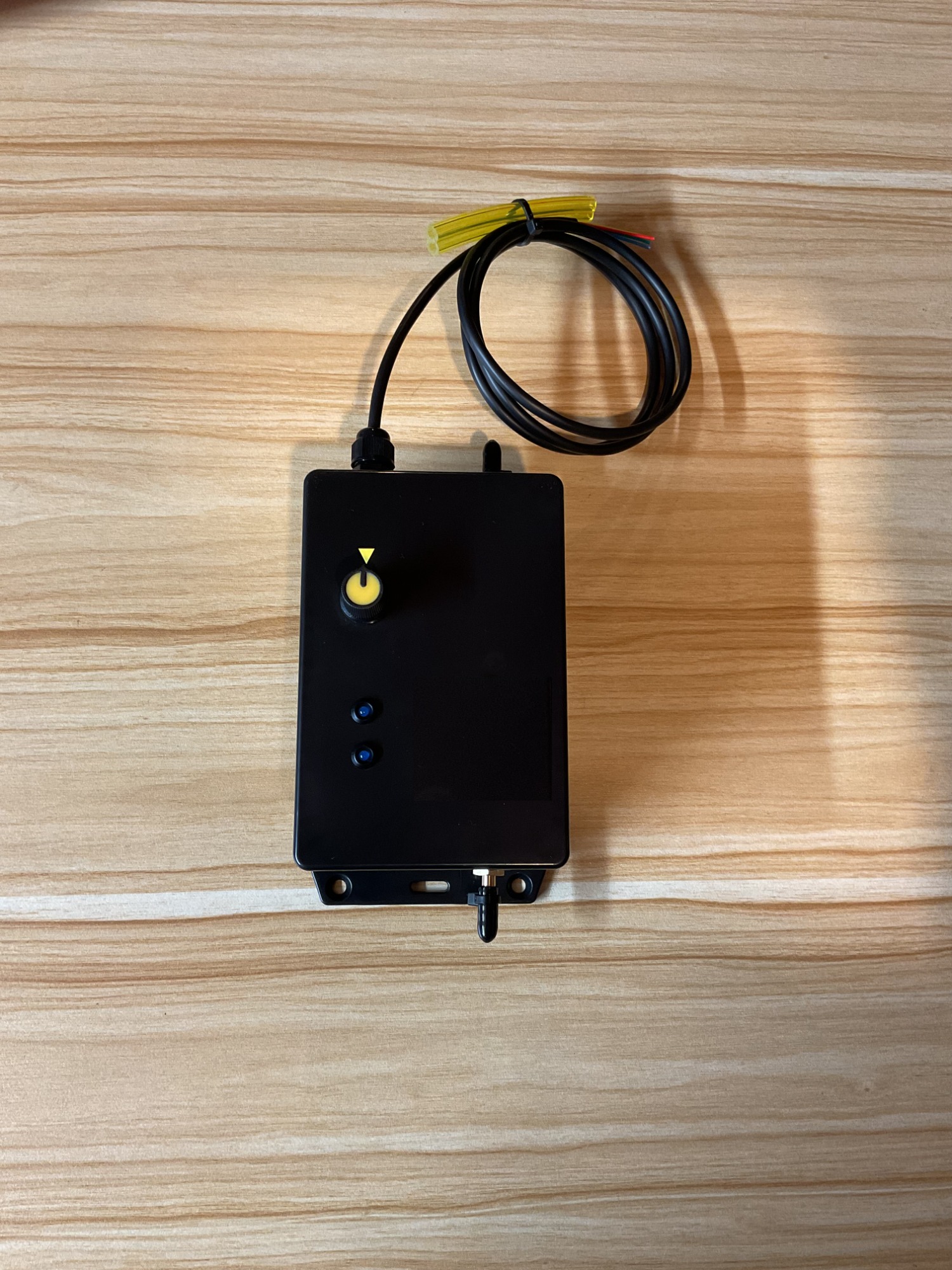

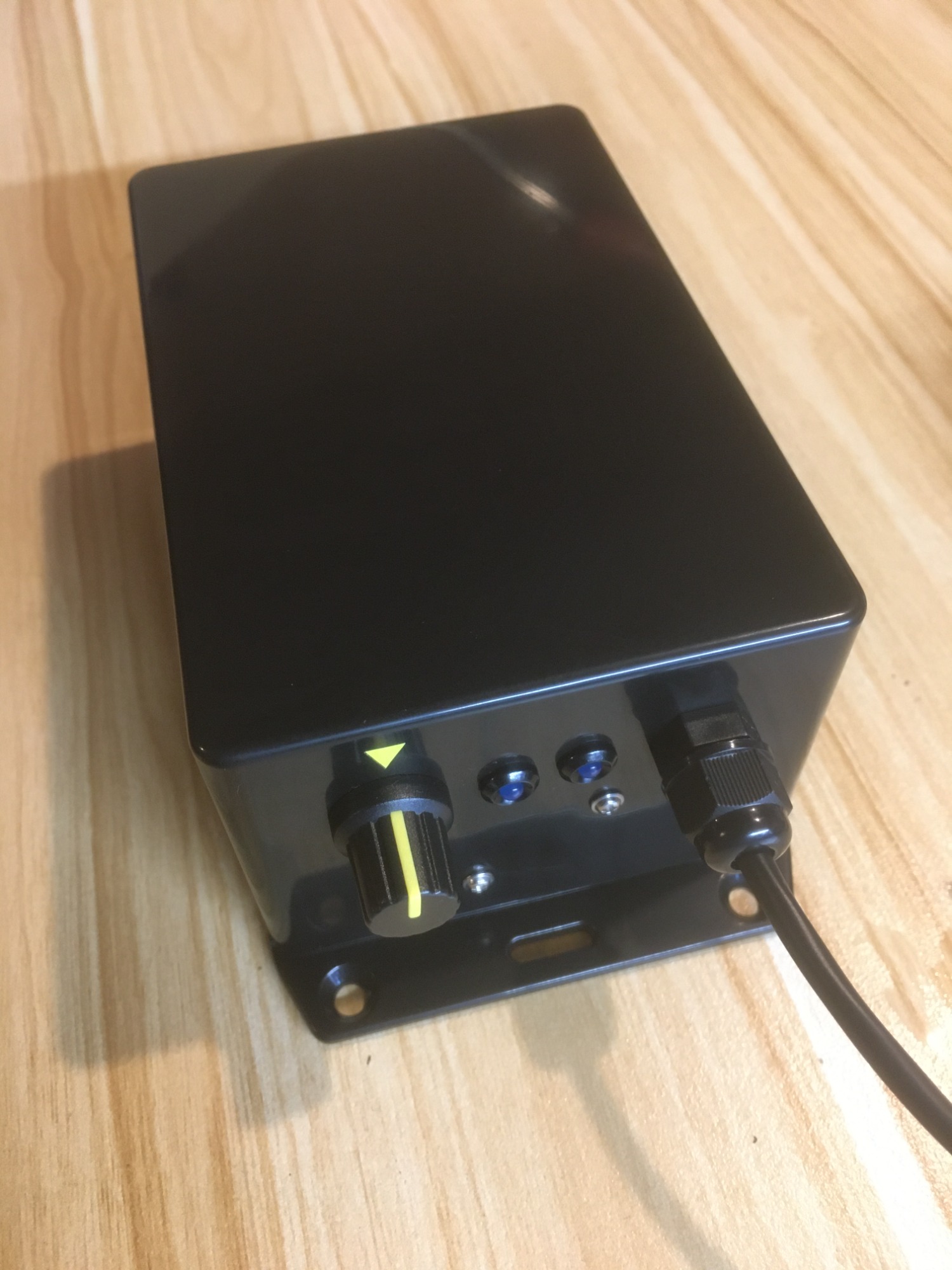

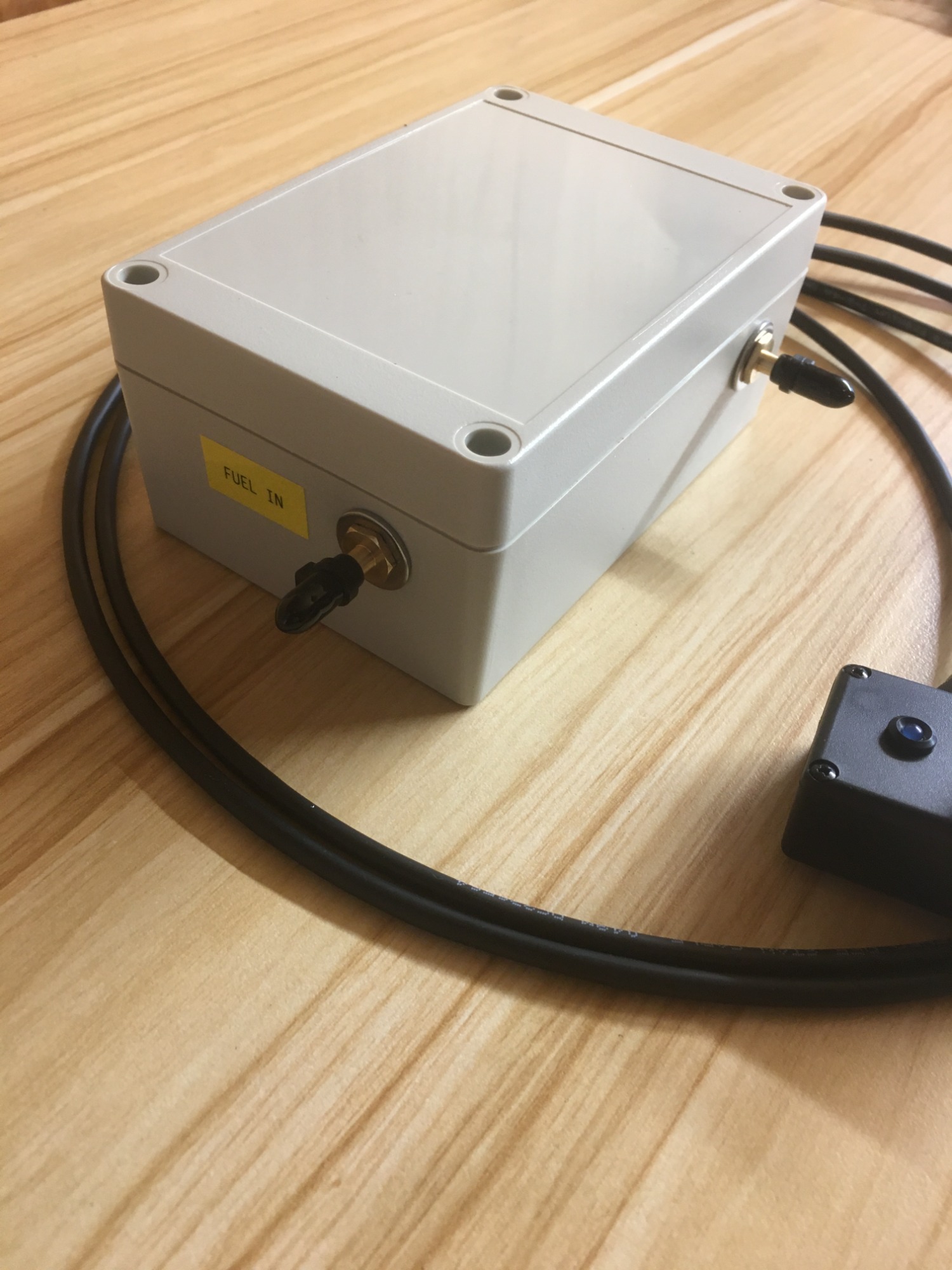

See the Pump Gallery below for pics and idea's.


Optional Extra's

2x 90 Degree fittings +£10.

6mm OD Barb fittings (std is 4mm) ideal for 3/16th or 5mm ID fuel line and rubber joiners +£10.

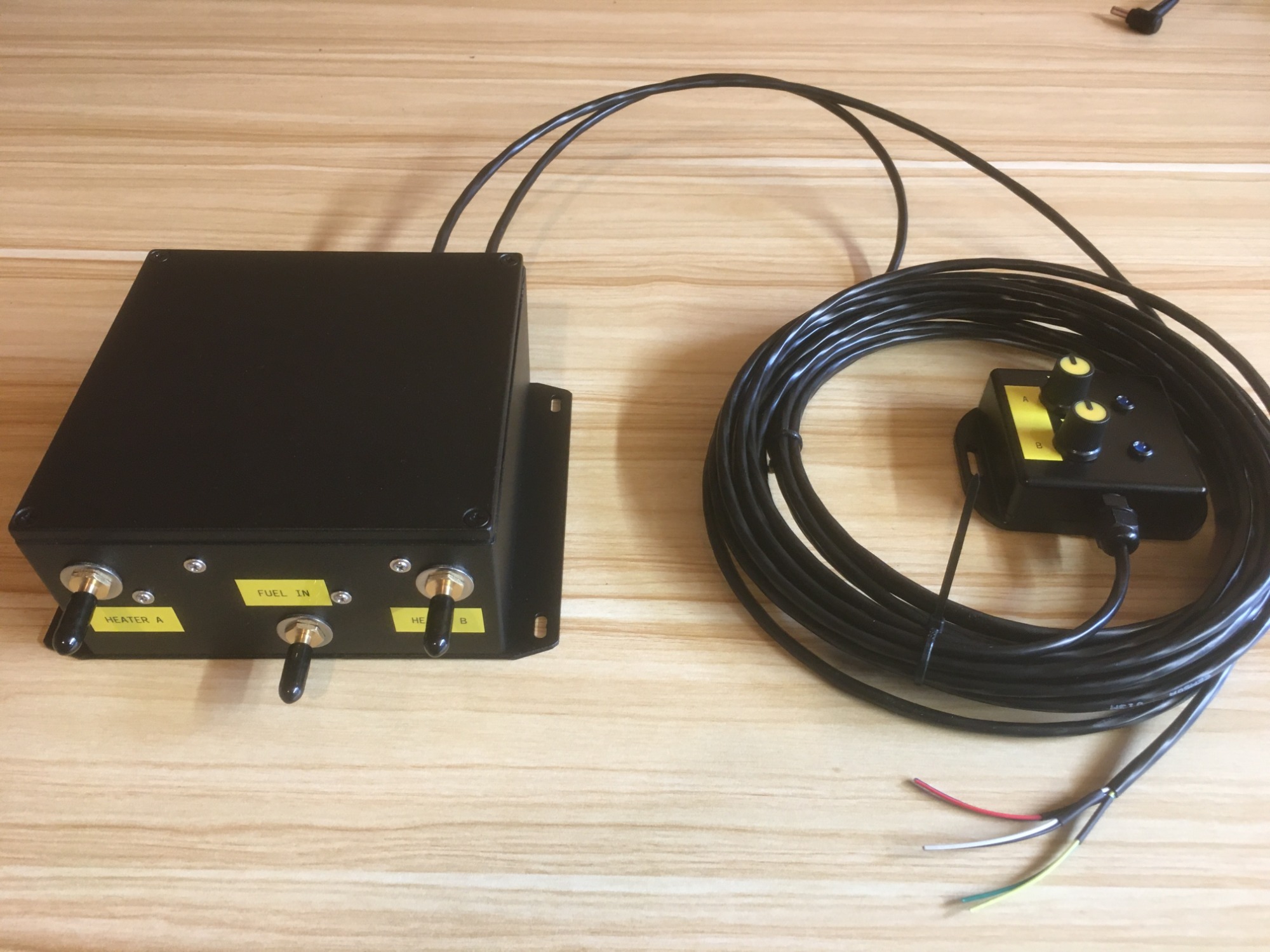

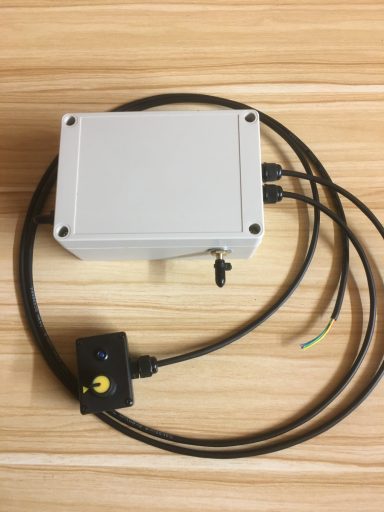

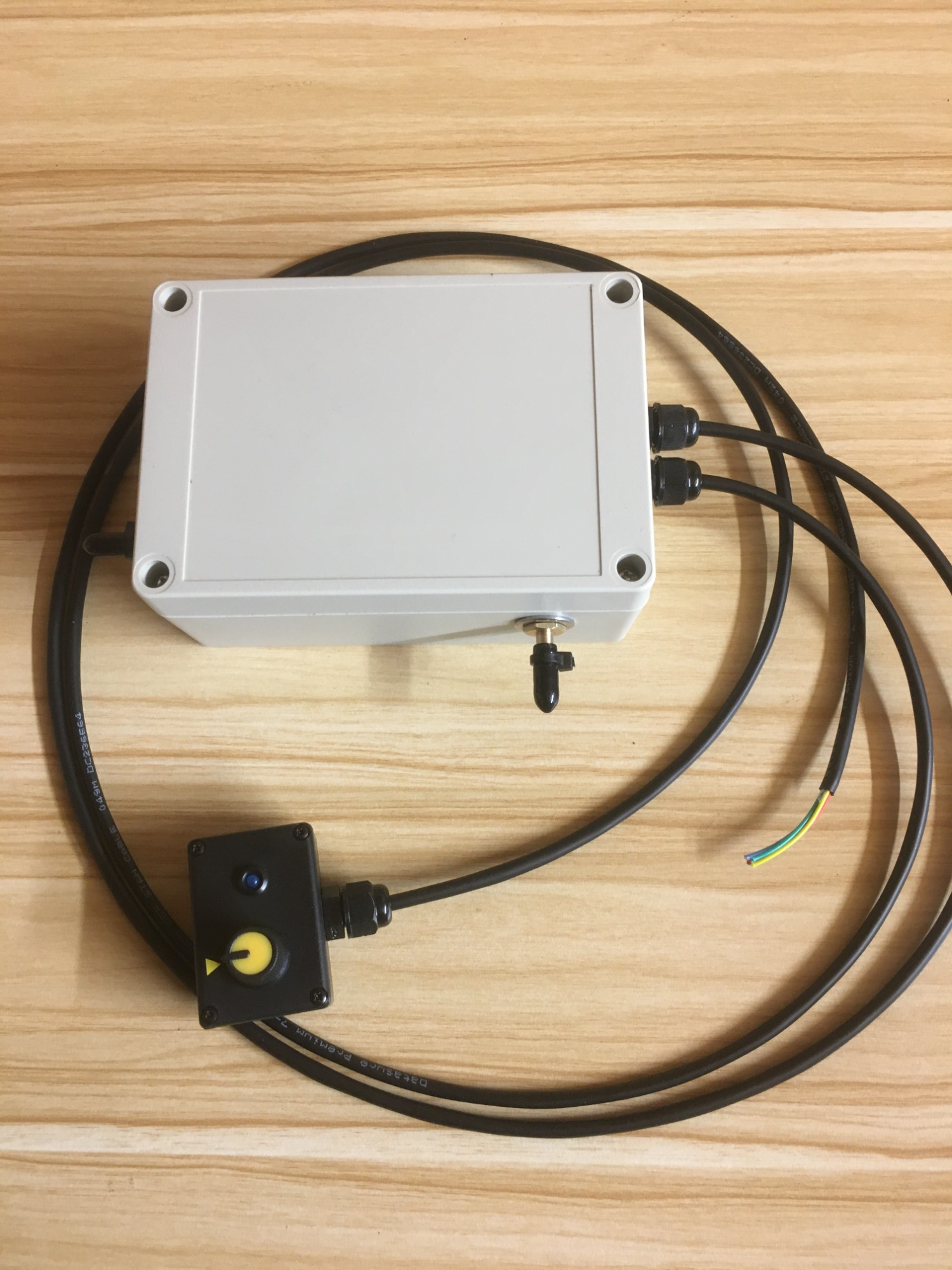

Remote dial/leds - This can be added to any option pump and any length lead you need +£25.

Needle Valve - This is needed for fuel tanks over 60cm above pump/heater to reduce head pressure +£35.

Further details

Four wires to connect. Red to +12V, Blue to Neg, Green and Yellow wires connect to your heaters pump plug wires any way around.

Works with 12v and 24v heaters. (24v heaters +£10)

Can be mounted in any orientation.

Fully compatible with the Afterburner controller.

The dial on the top allows for fine tuning if you wish. This is done by referencing a CO meter reading.

The dial is also used if you want to burn a different fuel to increase or decrease injection quantity per pulse.

I can set up for any size heater that uses a knocking pump.

This pump can happily pump - Diesel, Kerosene, Paraffin, Jet fuel, without increased wear to internal parts.

1 year warranty and full after sales technical support.

This is a pump for life, and fully serviceable.

Paypal pay in 3 available: Buy Now Pay Later | Installment Payments | PayPal UK

Lead time: 2 days to 2 weeks. Contact for latest.

For inquiries and orders please email: jamesbrowningsmith@yahoo.co.uk
